Features
-
PC plastic
Oil resistance and impact absorption. -
50° tilt out angle
-
Handles
-

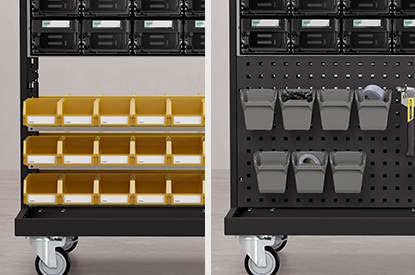

Hanging bins / Perforated Board
-
Bottom tray
-
4" PU castors
400kg load capacity
Step.1
Cart Type
Pro : Layer A, B, C with bins
Standard : Layer A, B with bins, shelf and perforated board
Step.2
Tilt Out Bins (S/M/L)
Step.3
Accessories
Standard (Layer C) :
Shelves, hanging bins and perforated board are optional
Made in Taiwan
Tilt Out Bins Cart
(pro)
| Model No. | Tilt Out Bin Drawer Qty | ||
|---|---|---|---|
| TC-111 (L) | TC-112 (M) | TC-113 (S) | |
| EKC-333M | — | — | 144 |
| EKC-332M | — | 32 | 96 |
| EKC-331M | 16 | — | 96 |
| EKC-322M | — | 64 | 48 |
| EKC-321M | 16 | 32 | 48 |
| EKC-311M | 32 | — | 48 |
| EKC-222M | — | 96 | — |
| EKC-221M | 16 | 64 | — |
| EKC-211M | 32 | 32 | — |
| EKC-111M | 48 | — | — |
| Dimensions | W786xD570xH1640 | ||
| Material | Steel | ||
Unit of measurement：mm

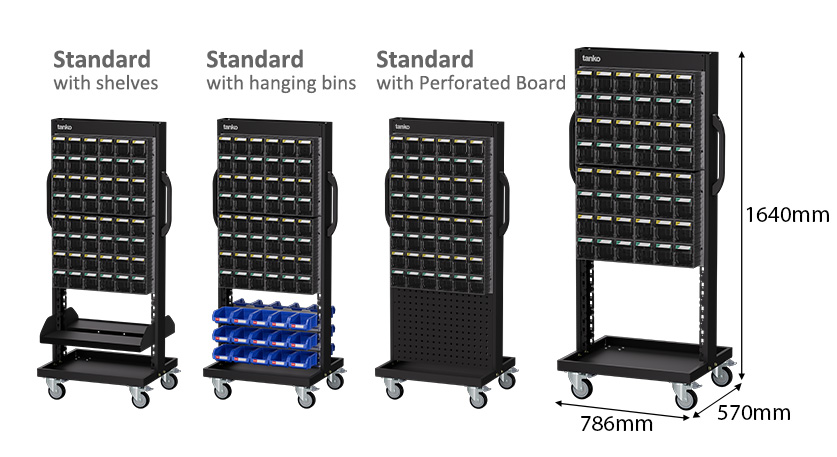

Tilt Out Bins Cart
(standard)
| Model No. | Tilt Out Bin Drawer Qty | ||
|---|---|---|---|
| TC-111 (L) | TC-112 (M) | TC-113 (S) | |
| EKC-330M | — | — | 96 |
| EKC-320M | — | 32 | 48 |
| EKC-310M | 16 | — | 48 |
| EKC-220M | — | 64 | — |
| EKC-210M | 16 | 32 | — |
| EKC-110M | 32 | — | — |
| Dimensions | W786xD570xH1640 | ||
| Material | Steel | ||
Unit of measurement：mm
Tilt Out Bins
| Model No. | TC-111 (L) |
TC-112 (M) |
TC-113 (S) |
||||
|---|---|---|---|---|---|---|---|
| Drawer Inner Dimensions |
274x62x70 | 126x62x70 | 77x62x70 | ||||
| Loading | 5 kg | 3 kg | 2 kg | ||||
| Material | ABS + PC (transparent) | ||||||
| Items included | Colored label | ||||||
Unit of measurement：WxDxH mm
TKI Hanging Bins
| Model No. | TKI-8301 | TKI-8302 | TKI-8303 | |||||
|---|---|---|---|---|---|---|---|---|
| Inner Dimensions | 86x78x45 | 86x100x70 | 86x150x70 | |||||
| Color | █ █ █ | █ █ █ █ | █ █ █ | |||||
| Material | Yellow / Blue / Red ▸ PE Black ▸ PP (anti-static) |
|||||||
| Items included | Label | |||||||
| Model No. | TKI-8304 | TKI-8305 | ||||||
|---|---|---|---|---|---|---|---|---|
| Inner Dimensions | 115x151x118 | 115x201x118 | ||||||
| Color | █ █ █ █ | █ █ █ | ||||||
| Material | Yellow / Blue / Red ▸ PE Black ▸ PP (anti-static) |
|||||||
| Items included | Label | |||||||
TA Team Bins
| Model No. | TA-112 | TA-115 | |||||
|---|---|---|---|---|---|---|---|
| Inner Dimensions | 94x133x69 | 119x191x119 | |||||
| Color | █ █ | ||||||
| Material | PE | ||||||
| Items included | Colored label | ||||||
Unit of measurement：WxDxH mm

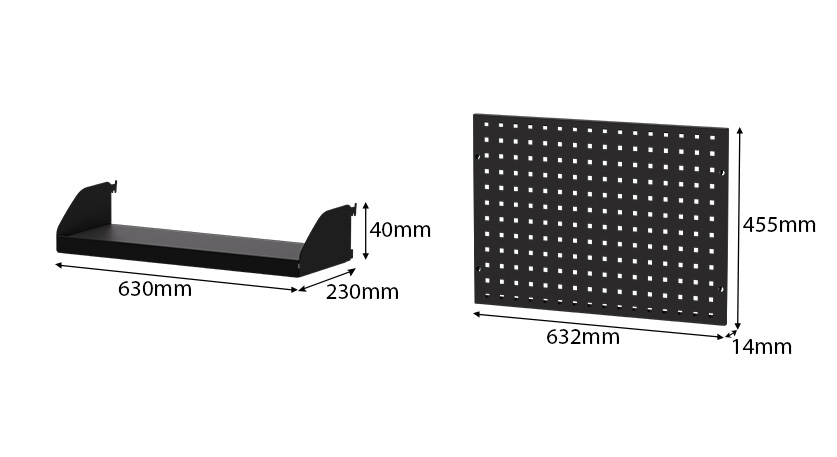

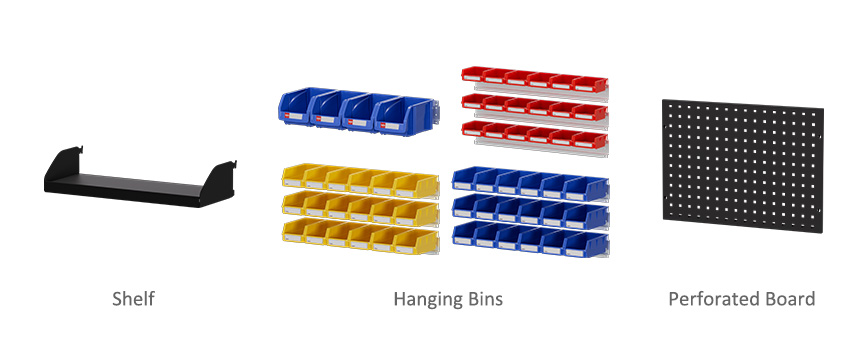

Shelf and
Perforated Board
| Model No. | EKC-P02 | EKC-P07 | |||||
|---|---|---|---|---|---|---|---|
| Dimensions | W630xD230xH40mm | W632xD14xH455mm | |||||
| Material | Steel | ||||||
| Loading | 50kg | — | |||||
尺寸單位：mm
